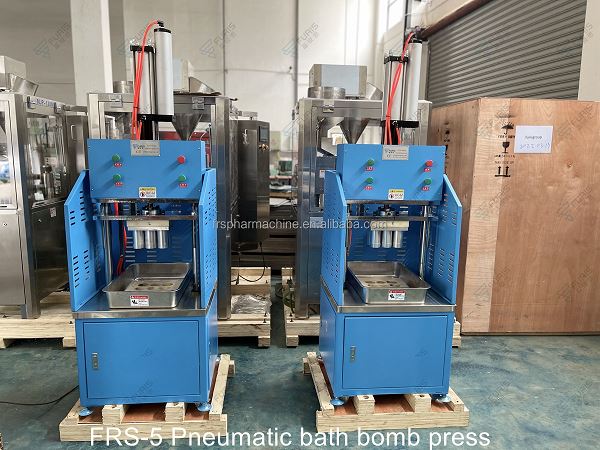

Factory FRS-5 Pneumatic Semi-auto Bath Bomb Shower Steamer Press Machine









Features:

Our full-column semi and full auto bath bomb hydraulic press machine can use the powder granule to press different kind size different shape product such as food, tea, ceramic, metallurgy, ore material, disinfectant, detergent, magnetic products,

multi-color bath bomb,animal lick salt block,detergent block etc We can offer you full auto bath bomb press machine semi auto bath bomb press machine full auto bath bomb wrap machine to meet different capacity inquiry.

Our machines mainly export to the USA and Russia.

This machine is the four-column hydraulic type press machine, The machine pressure can reach 100T,this machine can reach multi-cavity mould pressing, keep the same pressure,
greatly improve production efficiency. Electric control system adopts computer system control PLC control,touch screen operation, time can be adjusted in the processing,
which can realize automatic and manual two kinds of works. Mainly consists of mainframe and control structure of two parts through the main line and electrical device connected.
The machine cover is stainless steel,no rust for long time use.
Press times can be adjusted in the touch screen.
With acrylic cover to protect the worker
Can press mulity-color bath bomb if adding the more feeders
Adopt the Taiwan imported hydraulic system make sure the machine can work stable and has long work life.
Can Adopt the servo motor (can save 50% power,no noise,can avoid the oil temperature raise too high)

Parameters:

Model	FRS-5	Model	FRS-8	Model	FRS-45
Feeder volume	10L	Feeder volume	20L	Feeder volume	20L
Max pressure	5Ton(the pressure can customize)	Max pressure	8Ton(the pressure can customize)	Max pressure	45Ton(the pressure can customize)
Max press bath bomb size	15cm(customize)	Max press bath bomb size	10cm(customize)	Max press bath bomb size	20cm(customize)
Capacity	240-1800pcs per hour(according to different bath bomb size)	Capacity	4500-8100pcs per hour(according to different bath bomb size)	Capacity	4500-8100pcs per hour(according to different bath bomb size)
Power	2.5kw	Power	3kw	Power	5kw
Hydraulic oil	46#	Hydraulic oil	46#	Hydraulic oil	46#
Air compressor	small	Air compressor	small	Air compressor	no need
Cylinder volume	50L	Cylinder volume	100L	Cylinder volume	100L
Cooling type	air blow cooling	Cooling type	air blow cooling	Cooling type	air blow cooling
Machine weight	200kg	Machine weight	900kg	Machine weight	1500kg
Machine size	700*650*1800mm	Machine size	1300*2050*3.300mm	Machine size	1800*1300*1900mm
